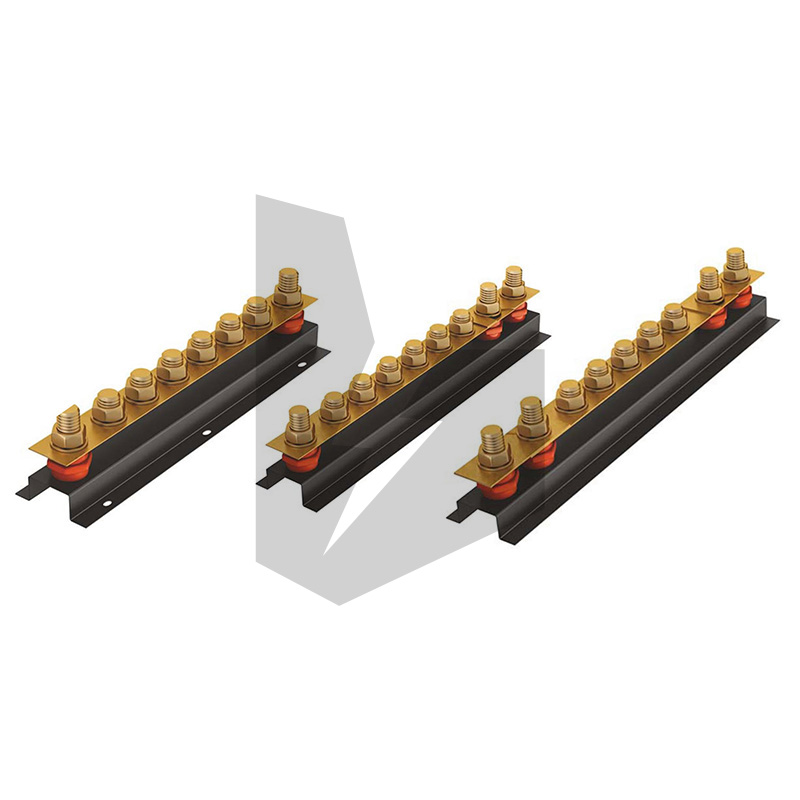

EARTH BAR
Used for tap or parallel connections of copper cable in earthing applications.
Specification

Number Terminators	Length (mm)	Width (mm)	Materials
			Bar	Fasteners	Base	Insulator
6	400/475/550	90	Copper Bar	Brass/Bronze/SS	Mild Steel	Polyester
8	500/575/650	90	Copper Bar	Brass/Bronze/SS	Mild Steel	Polyester
10	650/725/800	90	Copper Bar	Brass/Bronze/SS	Mild Steel	Polyester
12	750/825/900	90	Copper Bar	Brass/Bronze/SS	Mild Steel	Polyester
14	850/925/1000	90	Copper Bar	Brass/Bronze/SS	Mild Steel	Polyester
16	950/1025/1100	90	Copper Bar	Brass/Bronze/SS	Mild Steel	Polyester
18	1100/1175/1250	90	Copper Bar	Brass/Bronze/SS	Mild Steel	Polyester
20	1250/1325/1400	90	Copper Bar	Brass/Bronze/SS	Mild Steel	Polyester
22	1300/1375/1450	90	Copper Bar	Brass/Bronze/SS	Mild Steel	Polyester
24	1400/1475/1550	90	Copper Bar	Brass/Bronze/SS	Mild Steel	Polyester
26	1500/1625/1700	90	Copper Bar	Brass/Bronze/SS	Mild Steel	Polyester
28	1650/1725/1800	90	Copper Bar	Brass/Bronze/SS	Mild Steel	Polyester
30	1800/1875/1950	90	Copper Bar	Brass/Bronze/SS	Mild Steel	Polyester
